Micrometer Adjustable Flex Head Torque Wrench 3/8

Micrometer Adjustable Flex Head Torque Wrench 3/8" drive 16.9 - 105.1Nm

Micrometer Adjustable Torque Wrench 3/8

Micrometer Adjustable Torque Wrench 3/8" drive 10.2 - 98.3Nm

Micrometer Adjustable Torque Wrench 3/8

Micrometer Adjustable Torque Wrench 3/8" drive 16.9 - 132.2Nm

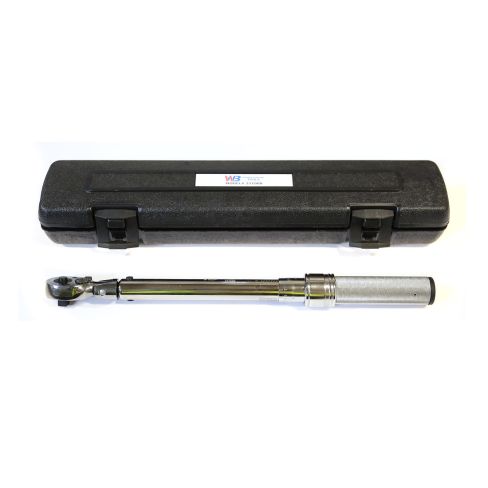

Micrometer Adjustable Flex Head Torque Wrench 3/8" drive 16.9 - 105.1Nm

A$406.56

3/8" drive; Range: 16.9 - 105.1Nm (10 - 80ft.lbs)

WBT P/N
371080

This micrometer adjustable torque wrench features a 3/8" drive flex and ratchet head and has an accuracy of +/-4% throughout a range of 16.9 - 105.1Nm (10 - 80ft.lbs).

Micrometer torque wrenches are one of the most commonly used and most versatile torque wrenches. The torque setting is easily adjusted by twisting the handle until the desired torque setting is reached. Rotating the handle clockwise tightens a spring inside and when applying torque to a nut or bolt, the tool clicks when the correct torque has been reached.

The WB Tools range of micrometer torque wrenches feature a distinct braking action when the set torque is reached. The braking action is greatest at the upper level of the scale when there is more pressure on the spring. Once the pressure is released the wrench will automatically reset itself, ready to operate again.

  • 3/8" drive
  • Range: 16.9 - 105.1Nm (10 - 80ft.lbs)
  • Accuracy +/-4% in both directions
  • Left & right-hand operation
  • Flex & ratchet head
  • Imperial & metric scales
  • Positive lock with spring loaded pull down lock ring
  • Super rugged knurled metal handle for industrial use
  • Socket locking device
  • Durable
  • Meets or exceeds Australian standards
  • Supplied with certificate of calibration
  • Supplied in a plastic carry case

SKU

Torque range
(imperial)

Graduation
(imperial)

Torque range
(metric)

Graduation
(metric)

Square
drive

Head
style

Length
(cm)

Packed
weight (kg)

370000 30 - 200in.lbs 1in.lbs 3.9 - 22.0Nm 1.1dNm 3/8” Ratchet 25  0.61
370000B 30 - 200in.lbs 1in.lbs 3.9 - 22.0Nm 1.1dNm 1/4” Ratchet 25  0.61
370050 10 - 50in.lbs 0.5in.lbs 14 - 54dNm 1.1dNm 1/4” Ratchet 25  0.61
371000 5 - 75ft.lbs 0.5ft.lbs 10.2 - 98.3Nm 0.7Nm 3/8” Ratchet 39 1.49
371080 10 - 80ft.lbs 0.5ft.lbs 16.9 - 105.1Nm 0.7Nm 3/8” Flex & Ratchet 39  1.49
371100 10 - 100ft.lbs 0.5ft.lbs 16.9 - 132.2Nm 0.7Nm 3/8” Ratchet 39 1.41
372000 20 - 150ft.lbs 1ft.lbs 34 - 197Nm 1.5Nm 1/2” Ratchet 47 1.81
373000 30 - 200ft.lbs 1ft.lbs 47 - 264Nm 1.5Nm 1/2” Ratchet 47 1.9
374000 30 - 250ft.lbs 1ft.lbs 47 - 332Nm 1.5Nm 1/2” Ratchet 54 2.2
375000 80 - 400ft.lbs 5ft.lbs 108 - 540Nm 7Nm 3/4” Ratchet 81 5.93
376000 100 - 600ft.lbs 5ft.lbs 169 - 779Nm 7Nm 3/4” Ratchet 109 7.26
377000 200 - 1000ft.lbs 5ft.lbs 305 - 1320Nm 7Nm 1” Ratchet 178 20

Note: SKU 371080 has a ratcheting Flex Head that pivots 15° in both directions.
