Large Footway Board 1200mm x 1600mm

A$424.48
WBT P/N
2001010601

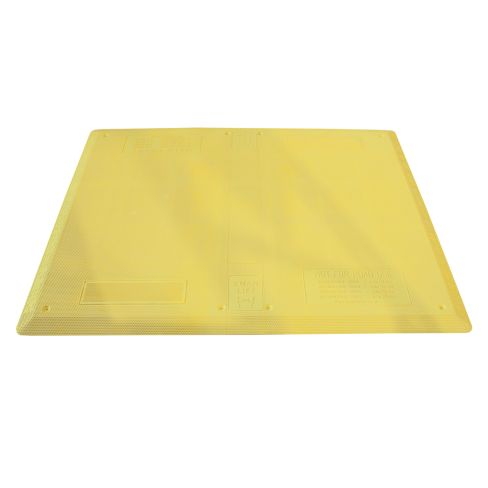

The Tricel trench cover footway board is a highly versatile and safe trench cover, designed for covering apertures, bores or trenches during maintenance, construction and repair projects. The footway boards allow safe access and passage over and around site excavations for pedestrian and light vehicular access. Designed to cover trenches of a maximum width of 700mm.

Fully compliant with UK & European Legislation:

  • Department for Transport (Safety at street works and road works, October 2013)
  • Department for Transport (Practical guide for street works, June 2006)
  • DETR (Best practice in street works and highway works, 2001)
  • Transco: (T/SP/E42. Technical specifications for footway boards, ramps and road plates)

Moulded from a single piece of glass reinforced composite, colour yellow. Measures 1600mm by 1200mm and weighs 27 kg.

Underside has ribbed framework for added strength.

The board has a maximum load of 600kg at 0.7m trench span and 700kg at 0.5m trench span.
