Digital Torque & Angle Wrench 1

Digital Torque & Angle Wrench 1" drive 60 - 1200Nm

Digital Angle Meter

Digital Angle Meter

Digital Torque & Angle Wrench 1

Digital Torque & Angle Wrench 1" drive 75 - 1500Nm

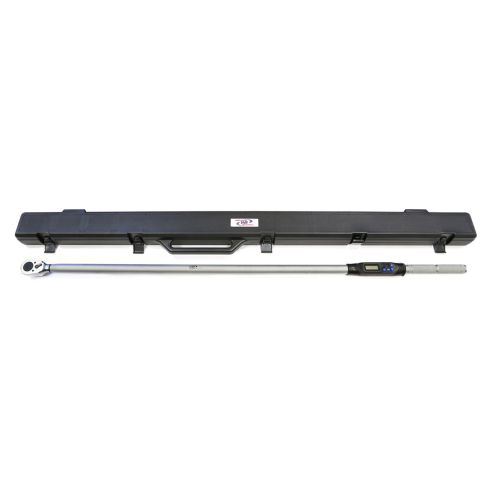

Digital Torque & Angle Wrench 1" drive 60 - 1200Nm

A$2,683.67

1" drive; Range: 60 - 1200Nm

WBT P/N
378303

This digital torque & angle wrench features a 1" square drive and has an angle accuracy of +/-2°, torque accuracy of +/-2.5% clockwise, +/-3.5% counterclockwise, throughout a range of 60 - 1200Nm.

Digital torque & angle wrenches have a simple to use digital readout that displays torque values in any of four torque units: ft.lbs., in.lbs., Nm, kg.cm, plus an angled value read out.

Simply set the desired torque value and apply force until the green LED screen illuminates. Suitable for light industrial, automotive, motorcycle, marine craft and aircraft applications.

  • 1" drive
  • Range: 60 - 1200Nm
  • Angle accuracy +/-2 degrees
  • Torque accuracy +/-2.5% clockwise and +/-3.5% counterclockwise
  • Digital torque-angle value readout
  • Left & right-hand operation
  • Buzzer & LED indicator for target torque or angle presets
  • Five selectable units: ft.lb., in.lb., Nm, kg.cm, degrees
  • Auto sleep after 2 minutes idle
  • Compatible with regular and rechargeable AA batteries
  • Meets or exceeds Australian standards
SKU

Torque range (imperial)

Torque range (metric)

Square drive

Length (cm)

Packed weight (kg) Accuracy
378314 13.3 - 265in.lb 1.50 - 30Nm 1/4” 48 1.4

+/- 2% CW, +/- 3% CCW

378338 5 - 99.5ft.lb           6.8 - 135Nm       3/8” 54 1.6

+/- 2% CW, +/- 3% CCW

378300 12.5 - 250ft.lb 17 - 340Nm      1/2” 68 2.4

+/- 2% CW, +/- 3% CCW

378301 18.4 - 368.7ft.lb 25 - 500Nm 3/4" 94 6

+/- 2.5% CW, +/- 3.5% CCW

378302 31.3 - 626.8ft.lb 42.5 - 850Nm 3/4" 120 9

+/- 2.5% CW, +/- 3.5% CCW

378303 44 - 885ft.lb 60 - 1200Nm 1" 179 13.5

+/- 2.5% CW, +/- 3.5% CCW

378304 55- 1106ft.lb 75 - 1500Nm 1" 179 13.5

+/- 2.5% CW, +/- 3.5% CCW

378305 74 - 1475ft.lb 100 - 2000Nm 1" 179 15

+/- 2.5% CW, +/- 3.5% CCW
