More than 100 different terminals applicable

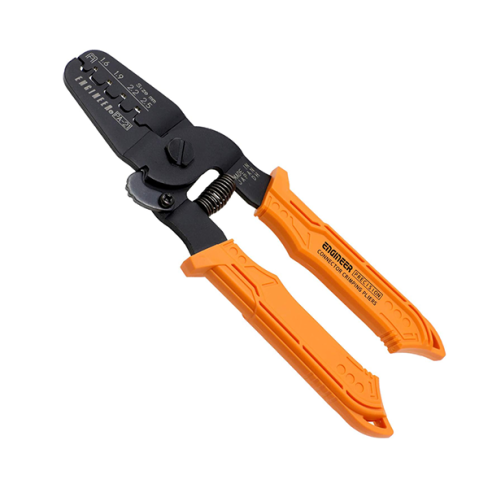

PA-21
Ideal for 2.5mm pitch and 5mm pitch, also works with long-wing type of open-barrels owing to elaborately curved design of the upper die.
(#26 - #18 AWG wires)
PA-21 | 1.6 | 0.8 | 1.8 | 0.41~0.51 | 0.13~0.21 | #26~24 |
1.9 | 1.0 | 0.41~0.64 | 0.13~0.33 | #26~22 | ||
2.2 | 1.2 | 0.51~0.81 | 0.21~0.52 | #24~20 | ||
2.5 | 1.4 | 0.64~1.02 | 0.33~0.82 | #22~18 |
